Product Details
PVC-U casing pipes are widely used in borewells and tubewells due to their durability, corrosion resistance, and cost-effectiveness. Here are some key features and applications of PVC-U casing pipes:
Key Features :
- Material and Durability: Made from a special PVC-U compound, these pipes are highly resistant to corrosion and aggressive soil elements, ensuring a long lifespan.
- Lightweight: They are significantly lighter than metal pipes, making transportation and installation easier and more economical
- Non-Toxic and Hygienic: The material is non-toxic, does not impart taste or odor to water, and is resistant to bacterial growth, making it safe for potable water
- Mechanical Properties: High joint strength and advanced mechanical properties reduce the risk of leaks and breakages
- Temperature Resistance: Can withstand a maximum ambient temperature of 70°C.
Applications :
- Borewells and Tubewells: Used for domestic, irrigation, industrial, and mining applications.
- Rainwater Harvesting: Suitable for rainwater harvesting systems.
- Water Disposal and Injection Wells: Also used in water disposal and injection wells
Types

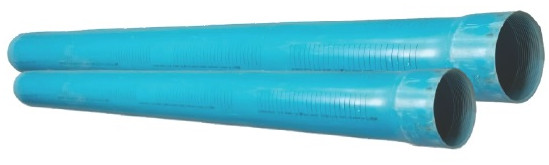

- Plain Pipes: Used as extension pipes to screen pipes.
- Screen Pipes: Available in plain or ribbed types, with transverse slots to allow water entry.
- Ribbed Screen Pipes: Longitudinal ribs increase permeability by keeping granulated soil away from slots.

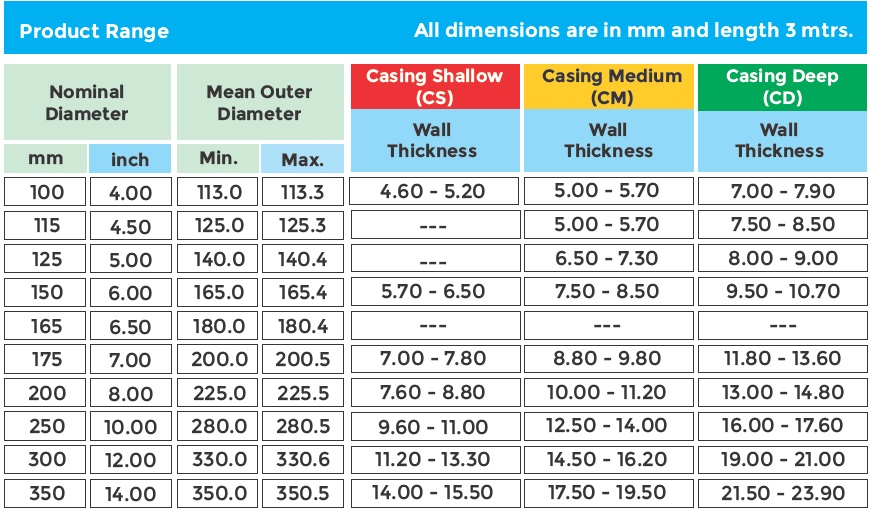

Specifications
- Range: Available in outer diameters from 40 mm to 315 mm.
- Standards: Comply with standards like IS 12818:2010.
- Length: Typically available in lengths of 3 and 6 meters.
TYPES :

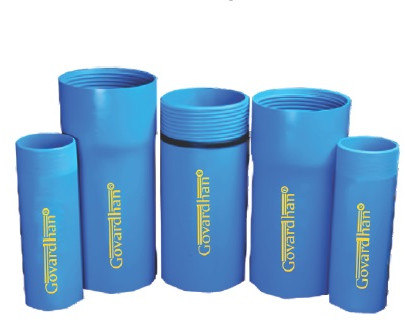

Govardhan Casing Pipes are an ideal choice for bore well applications to pump out clean water from bore wells. Govardhan Casing pipes are therefore manufactured in a proficient manner to ensure long lasting quality thus providing strong, durable and better alternative to GI, HDPE and MS pipes. Govardhan Casing pipes are manufactured using high quality PVC compound and are available in below said grades
Casing Shallow (CS)
For bore-wells with depths upto 80 meters (red colour code)
Casing Medium (CM)
For bore-wells with depths upto 200 meters (yellow colour code
Casing Deep (CD)
For bore-wells with depths upto 350 meters (green colour code)
.
SCREEN PIPES
These pipes may be plain or bellend. They have transverse slots and are mainly used in bore wells, from the water table level onwards
.
TECHNICAL PARAMETERS

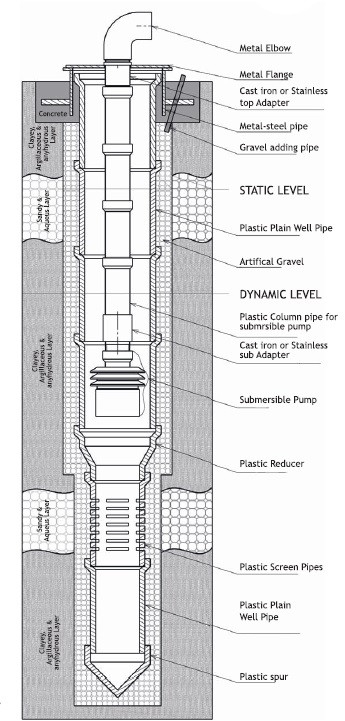

Assembly (Installation) Rules and Important Considerations for the Govardhan Deep Well Pipe and Column Pipe
- The ground survey must be done before the borehole (deep well) is opened
- Well pipe and pump column pipe should be selected according to the pump to be used.
- The pipes must be carried carefully without dragging, colliding to each other and ground.
- Pipes must be carefully checked before use and installation. (cracks, fractures, damages and physical defects) Defective pipes should not be used
- The thread protective covers of the pipes should not be removed until the time of installation.
- Mineral oil (grease) must not be applied to the threaded part of pipe. However, may use iquid soap.
- The plastic tightening wrench must be used during the installation. (Do not use chain or metal torque wrench that could be damage the pipe)
